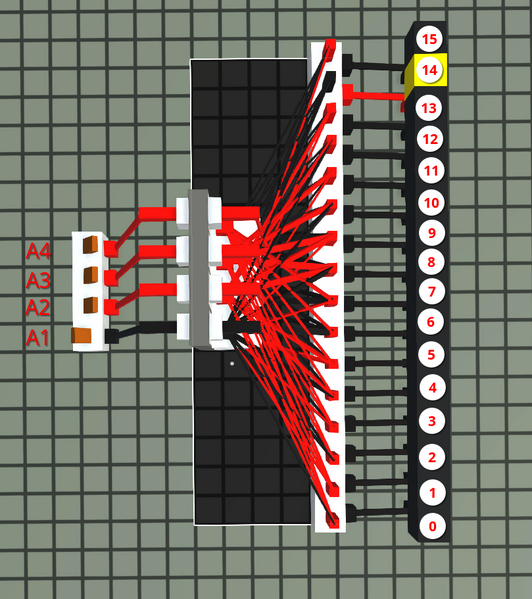

4 bit decoder. Input on the left with the value of 1110. Output on the right turned on the 14th lamp
